2025年4月26日 星期六

PrivacyIDEA on Oracle Linux 9 - 500 Internal Server Error on Apache

 相關問題參考:

https://community.privacyidea.org/t/privacyidea-on-debian-12-500-internal-server-error-on-apache/3360/1

透過 Apache log 可看看出目前 mod_wsgi (Web Server Gateway Interface  [Python])的版本為何?

如 Python  3.9 的  wsgi 4.7.1 另 Python 3.12 則為 4.9.4 ,如下 log 所示:



Apache/2.4.62 (Oracle Linux Server) OpenSSL/3.2.2 mod_auth_gssapi/1.6.3 mod_wsgi/4.7.1 Python/3.9 configured -- resuming normal operations


Apache/2.4.62 (Oracle Linux Server) OpenSSL/3.2.2 mod_auth_gssapi/1.6.3 mod_wsgi/4.9.4 Python/3.12 configured -- resuming normal operations


相關資訊可以透過 dnf info 取得


[root@Oracle9 conf.modules.d]# dnf info mod_wsgi

Last metadata expiration check: 1:33:33 ago on Sun 27 Apr 2025 10:55:14 AM CST.

Available Packages

Name         : mod_wsgi

Version      : 4.7.1

Release      : 11.el9

Architecture : src

Size         : 705 k

Source       : None

Repository   : ol9_appstream

Summary      : A WSGI interface for Python web applications in Apache

URL          : https://modwsgi.readthedocs.io/

License      : ASL 2.0

Description  : The mod_wsgi adapter is an Apache module that provides a WSGI compliant

             : interface for hosting Python based web applications within Apache. The

             : adapter is written completely in C code against the Apache C runtime and

             : for hosting WSGI applications within Apache has a lower overhead than using

             : existing WSGI adapters for mod_python or CGI.




[root@Oracle9 conf.modules.d]# dnf info python3.12-mod_wsgi

Last metadata expiration check: 1:34:08 ago on Sun 27 Apr 2025 10:55:14 AM CST.

Installed Packages

Name         : python3.12-mod_wsgi

Version      : 4.9.4

Release      : 2.el9

Architecture : x86_64

Size         : 1.1 M

Source       : python3.12-mod_wsgi-4.9.4-2.el9.src.rpm

Repository   : @System

From repo    : ol9_appstream

Summary      : A WSGI interface for Python web applications in Apache

URL          : https://modwsgi.readthedocs.io/

License      : ASL 2.0 and CC-BY

Description  : The mod_wsgi adapter is an Apache module that provides a WSGI compliant

             : interface for hosting Python based web applications within Apache. The

             : adapter is written completely in C code against the Apache C runtime and

             : for hosting WSGI applications within Apache has a lower overhead than using

             : existing WSGI adapters for mod_python or CGI.


指定安裝

# dnf install python3.12-mod_wsgi.x86_64


切換作業系統所使用的 Python 版本.


[root@Oracle9 conf.modules.d]# alternatives --config python3


There are 2 programs which provide 'python3'.


  Selection    Command

-----------------------------------------------

*+ 1           /usr/bin/python3.12

   2           /usr/bin/python3.11


Enter to keep the current selection[+], or type selection number:



[root@Oracle9 conf.modules.d]# python -V

Python 3.12.5

[root@Oracle9 conf.modules.d]# cat /opt/privacyidea/requirements.txt  | more

#

# This file is autogenerated by pip-compile with Python 3.12

# by the following command:

#

#    pip-compile --allow-unsafe --generate-hashes --output-file=requirements.txt

#

alembic==1.14.1 \

    --hash=sha256:1acdd7a3a478e208b0503cd73614d5e4c6efafa4e73518bb60e4f2846a37b1c5 \

    --hash=sha256:496e888245a53adf1498fcab31713a469c65836f8de76e01399aa1c3e90dd213

    # via flask-migrate

.......


pip install

[privacyidea@Oracle9 ~]$  pip3 install mod_wsgi
Collecting mod_wsgi
  Using cached mod_wsgi-5.0.2.tar.gz (498 kB)
  Installing build dependencies ... done
  Getting requirements to build wheel ... done
  Preparing metadata (pyproject.toml) ... done
Building wheels for collected packages: mod_wsgi
  Building wheel for mod_wsgi (pyproject.toml) ... done
  Created wheel for mod_wsgi: filename=mod_wsgi-5.0.2-cp312-cp312-linux_x86_64.whl size=743647 sha256=539296f08235beaa861b605ab3957d6a9f06666a2eabb2895cc3b08e02934605
  Stored in directory: /opt/privacyidea/.cache/pip/wheels/20/ff/89/b795934127969d1eb6a9edb07d8fc96f484e45e2b6e2f6736d
Successfully built mod_wsgi
Installing collected packages: mod_wsgi
Successfully installed mod_wsgi-5.0.2


==> mod_wsgi-py312.cpython-312-x86_64-linux-gnu.so


# cp mod_wsgi-py312.cpython-312-x86_64-linux-gnu.so /etc/httpd/modules/

# vi /etc/httpd/conf.modules.d/10-wsgi-python3.conf


[root@Oracle9 httpd]# cat /etc/httpd/conf.modules.d/10-wsgi-python3.conf

# NOTE: mod_wsgi_python3 can not coexist in the same apache process as

# mod_wsgi (python2).  Only load if mod_wsgi is not already loaded.


<IfModule !wsgi_module>

    #LoadModule wsgi_module modules/mod_wsgi_python3.so

    LoadModule wsgi_module modules/mod_wsgi-py312.cpython-312-x86_64-linux-gnu.so

</IfModule>


Apache log

=> Apache/2.4.62 (Oracle Linux Server) OpenSSL/3.2.2 mod_auth_gssapi/1.6.3 mod_wsgi/5.0.2 Python/3.12 configured -- resuming normal operations



[root@Oracle9 httpd]#


PrivacyIDEA  整合 Apache + mod_wsgi 能否正常運行

要確定 Apache 內的 privacyidea.conf 是否正確.

# vi /etc/httpd/conf.d/privacyidea.conf

還有   privacyideaapp.wsgi  及 pi.cfg 內容設定及相關權限/目錄等等設定.

[root@Oracle9 conf.d]# vi /etc/privacyidea/privacyideaapp.wsgi

[root@Oracle9 conf.d]# cat  /etc/privacyidea/privacyideaapp.wsgi
import sys
sys.stdout = sys.stderr
from privacyidea.app import create_app
application = create_app(config_name="production", config_file="/etc/privacyidea/pi.cfg")

[root@Oracle9 conf.d]# vi /etc/privacyidea/pi.cfg

[root@Oracle9 conf.d]# cat /etc/privacyidea/pi.cfg
import logging
# The realm, where users are allowed to login as administrators
SUPERUSER_REALM = ['super', 'administrators']
# Your database
SQLALCHEMY_DATABASE_URI = 'mysql+pymysql://pi_user:password@localhost/pi_db'
# This is used to encrypt the auth_token
# This is used to encrypt the admin passwords
# This is used to encrypt the token data and token passwords
PI_ENCFILE = '/etc/privacyidea/enckey'
# This is used to sign the audit log
PI_AUDIT_KEY_PRIVATE = '/etc/privacyidea/private.pem'
PI_AUDIT_KEY_PUBLIC = '/etc/privacyidea/public.pem'
PI_AUDIT_SQL_TRUNCATE = True
# The Class for managing the SQL connection pool
PI_ENGINE_REGISTRY_CLASS = "shared"
PI_AUDIT_POOL_SIZE = 20
#PI_LOGFILE = '/tmp/privacyidea.log'
PI_LOGFILE = '/var/log/privacyidea/privacyidea.log'
PI_LOGLEVEL = logging.INFO
PI_PEPPER = 'v9EW6gt1SGEHgpBQpznTmPtn'
SECRET_KEY = 'BnLflBoiKfc9HOJyFR2agAv9'
[root@Oracle9 conf.d]#









2025年4月25日 星期五

pfSense 整合 Windows AD 測試


(1) pfSense 本機   整合 Windows AD


重要設定節錄

System / User Manager / Authentication Servers / Edit

Authentication Servers


Search scopeLevel

==> one Level

Base DN


==> DC=otp,DC=ai


Authentication containers


==> CN=Users,DC=otp,DC=ai;OU=Domain Controllers,DC=otp,DC=ai


Bind credentials


==> CN=administrator,CN=users,DC=otp,DC=ai


User naming attribute


==> samAccountName







=================================================

(2) pfSense 本機   整合自身 FreeRADIUS 服務及Windows AD


重要設定節錄

Services / FreeRADIUS / LDAP


Identity

==> CN=administrator,CN=users,DC=otp,DC=ai


Base DN

==> DC=otp,DC=ai

Filter

==> (samaccountname=%{%{%{Stripped-user-Name}:-%{User-Name}})


Base Filter

==> objectClass=user




================================================

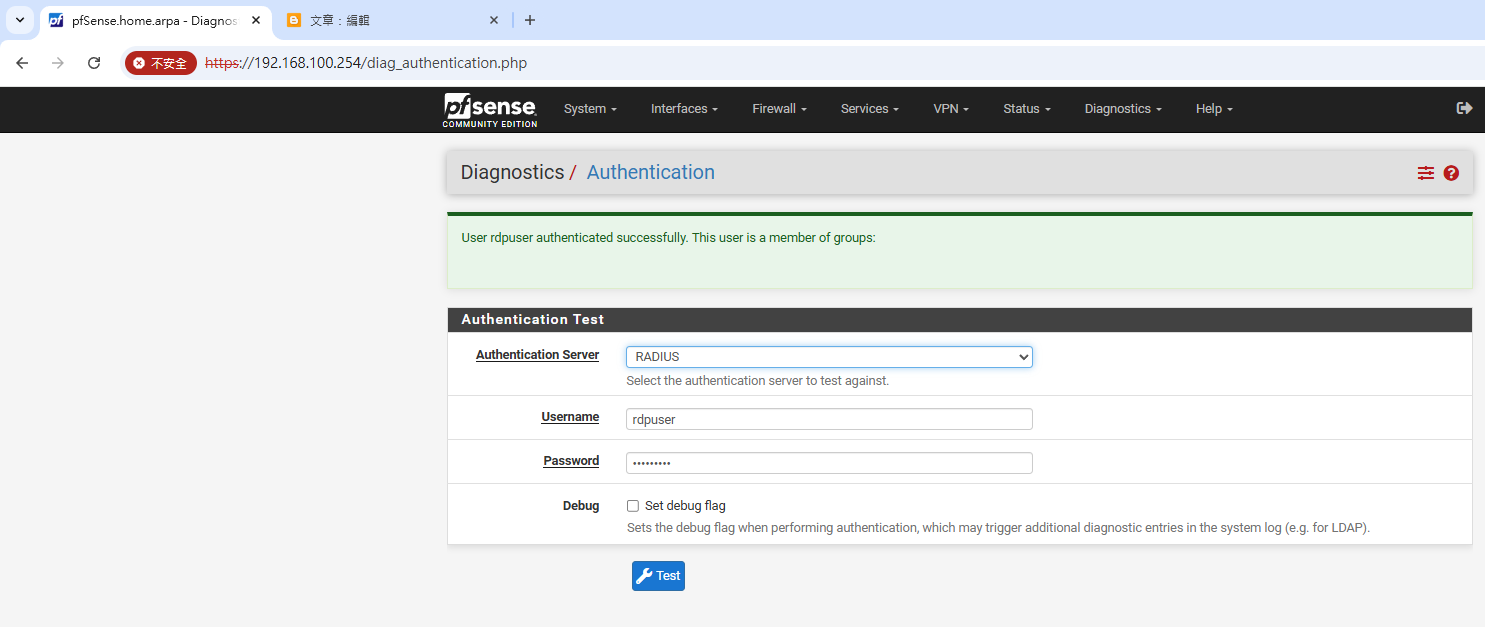

(3)驗證









2025年4月13日 星期日

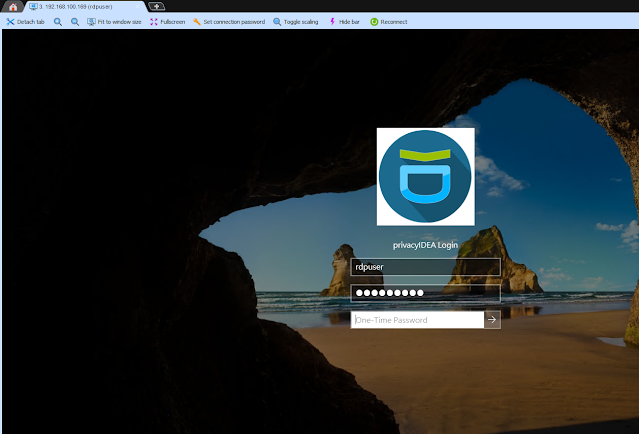

privacyIDEA [ 2FA/OTP Test ]

https://www.privacyidea.org/

https://github.com/privacyidea/privacyidea

https://privacyidea.readthedocs.io/en/latest/installation/centos.html












FreeRADIUS 搭配 Google Authenticator 完成 2FA [ 透過 pfSense ]

 使用軟體 pfsense

https://www.pfsense.org/


關於這個主題我之前寫的筆記

https://xrcd2.blogspot.com/2015/03/vyos-openvpn-plugin-otp-sop.html

https://xrcd2.blogspot.com/2016/01/cisco-radius-otp.html

https://xrcd2.blogspot.com/2016/09/vyosopenvpnmfa.html

https://xrcd2.blogspot.com/2024/06/how-to-use-otp-login-windows-vyos.html


以往都透過 Linux 安裝 FreeRADIUS 搭配 Google Authenticator 完成 2FA

後來在網上發現使用 pfsense 更簡單些,以下實驗內網IP為 192.168.100.0/24 GW 254

先將 pfsense 的 WAN Port 設定為 192.168.100.x , 系統預設 LAN Port IP 192.168.1.1/24

更新  pfsense 後,安裝 FreeRADIUS 後,刪除 WAN port IP 再將 LAN Port IP 設定成 192.168.1.254

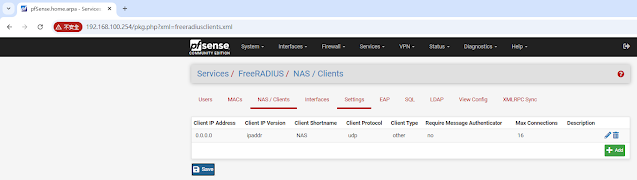

重要設定畫面節錄如下:

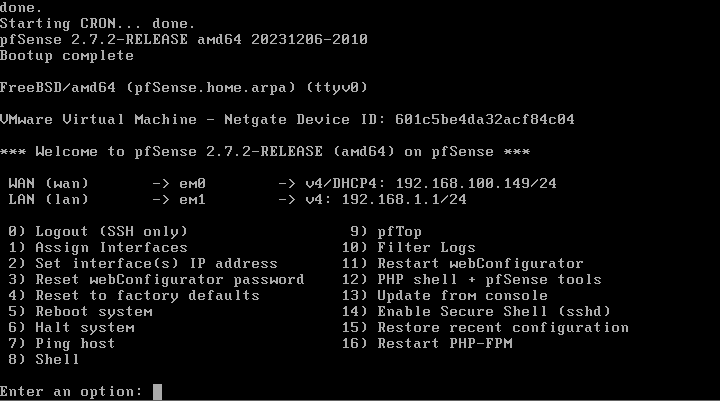

透過 CLI 變更 IP 設定後
